Transformable – Just like in the game
OG design from the game

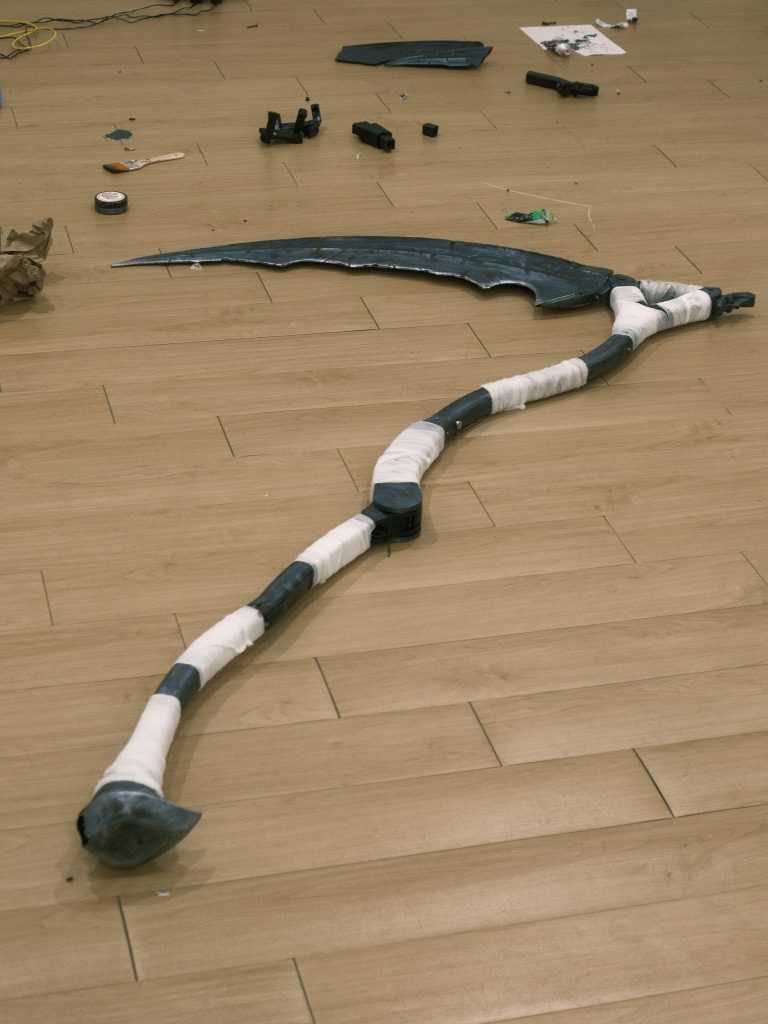

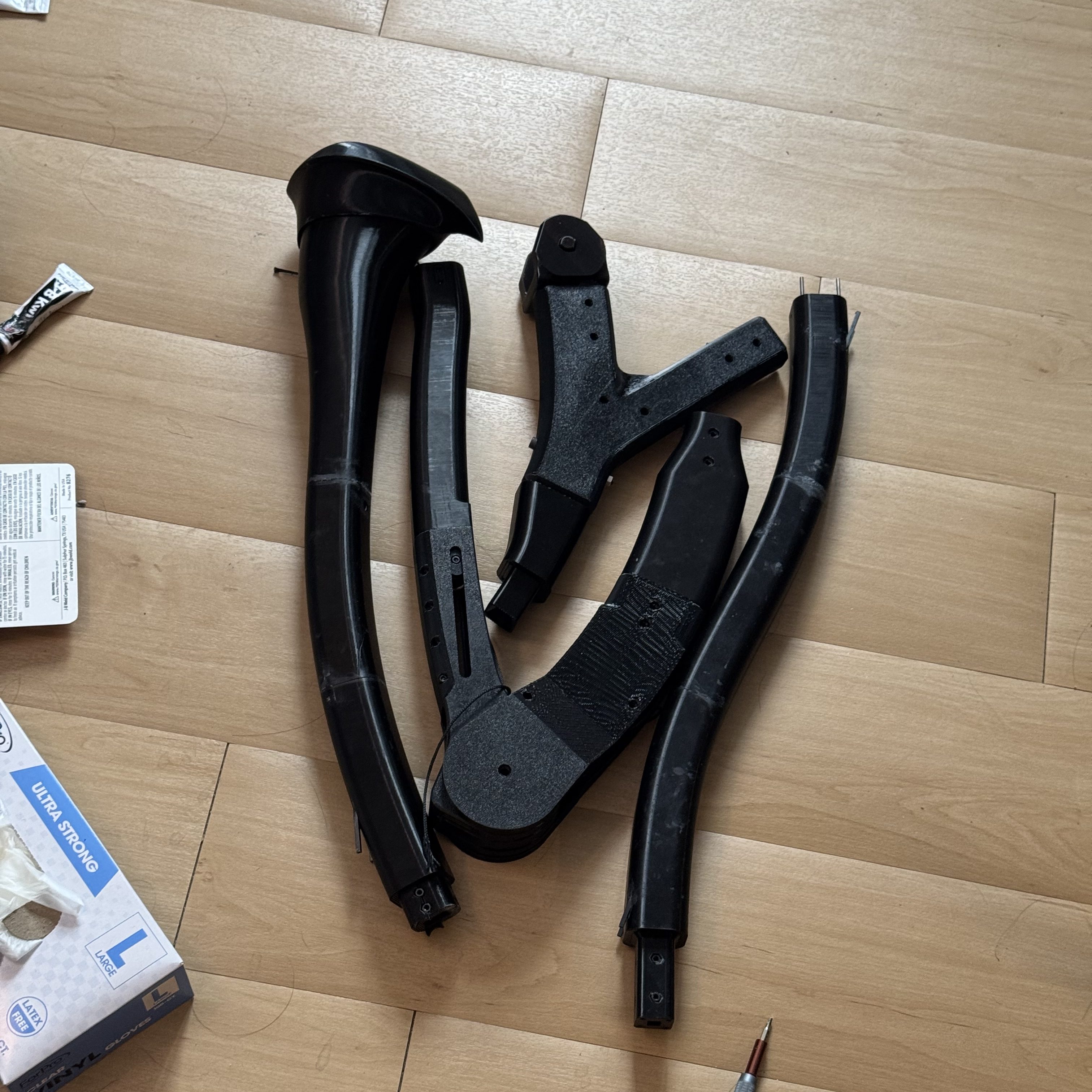

Final assembly & some test/failed parts

Cosplay Prop – Burial Blade (BloodBorne)

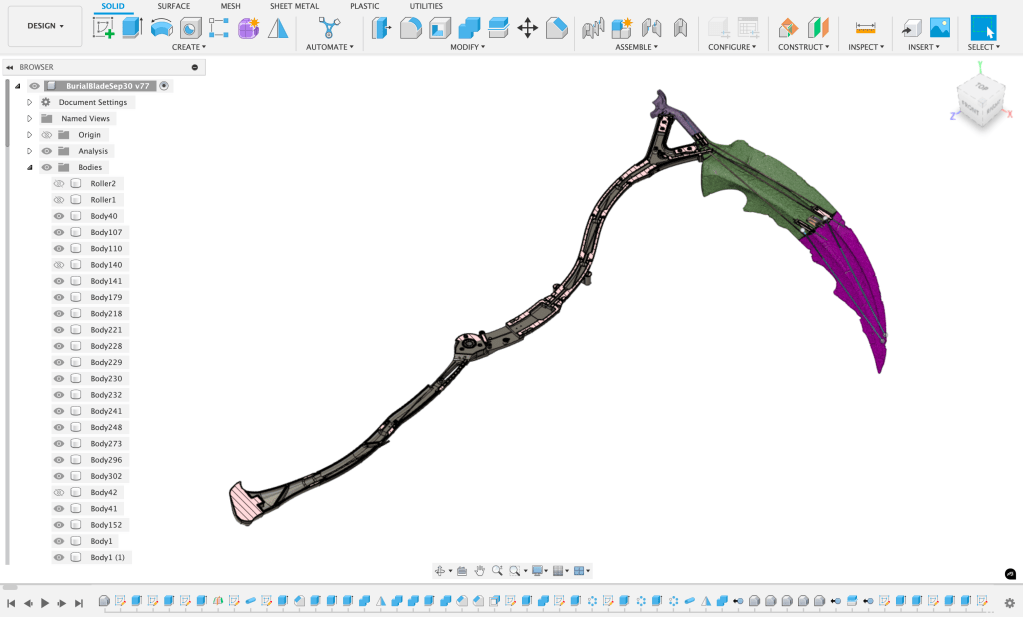

Modeled in Fusion 360 and sculpted using Nomad

Designed the assembly based on 3d printer’s size (220 x 220 x 220 mm) and filament’s strength (PETG).

Spring-loaded moving pulley to auto-transform the weapon as in the game
Auto-reset mechanism releases the joint lock (image 1) with a steel wire
Modular design for easily transporting in a regular 30inch suitcase
Final painted prop
